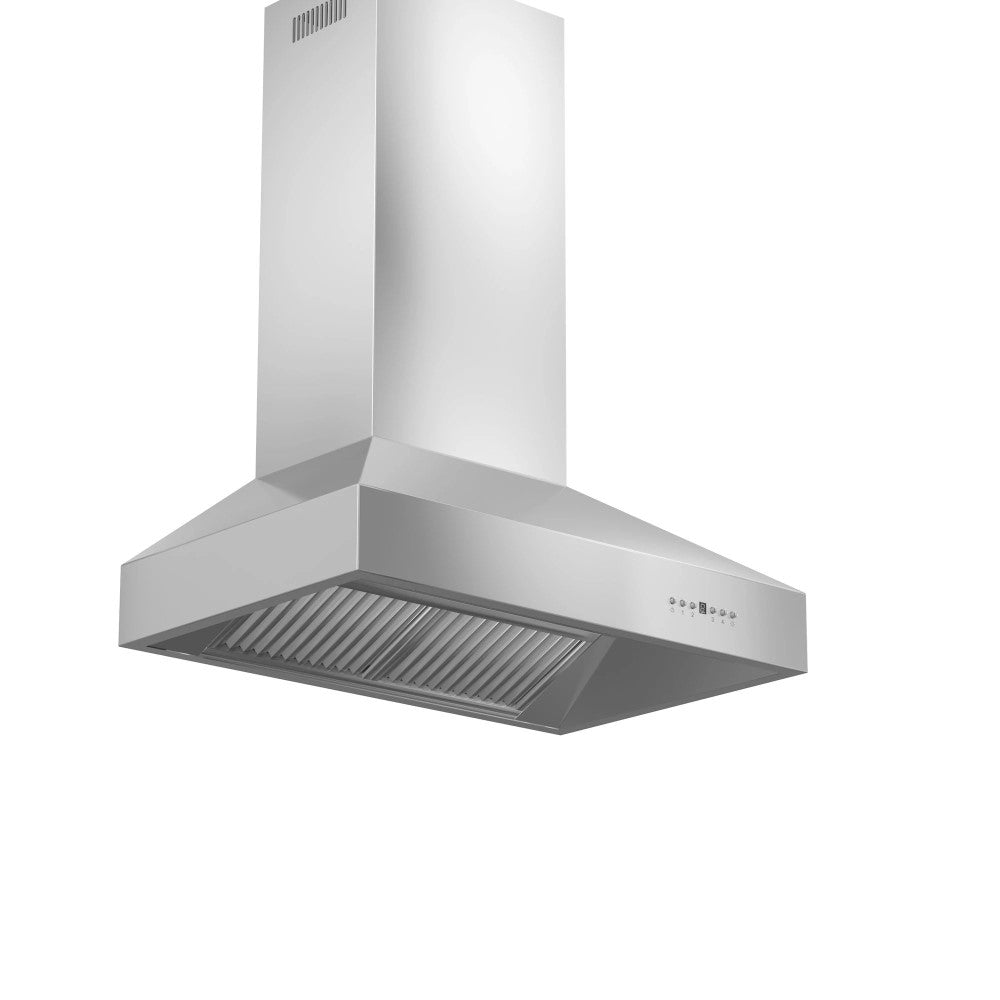

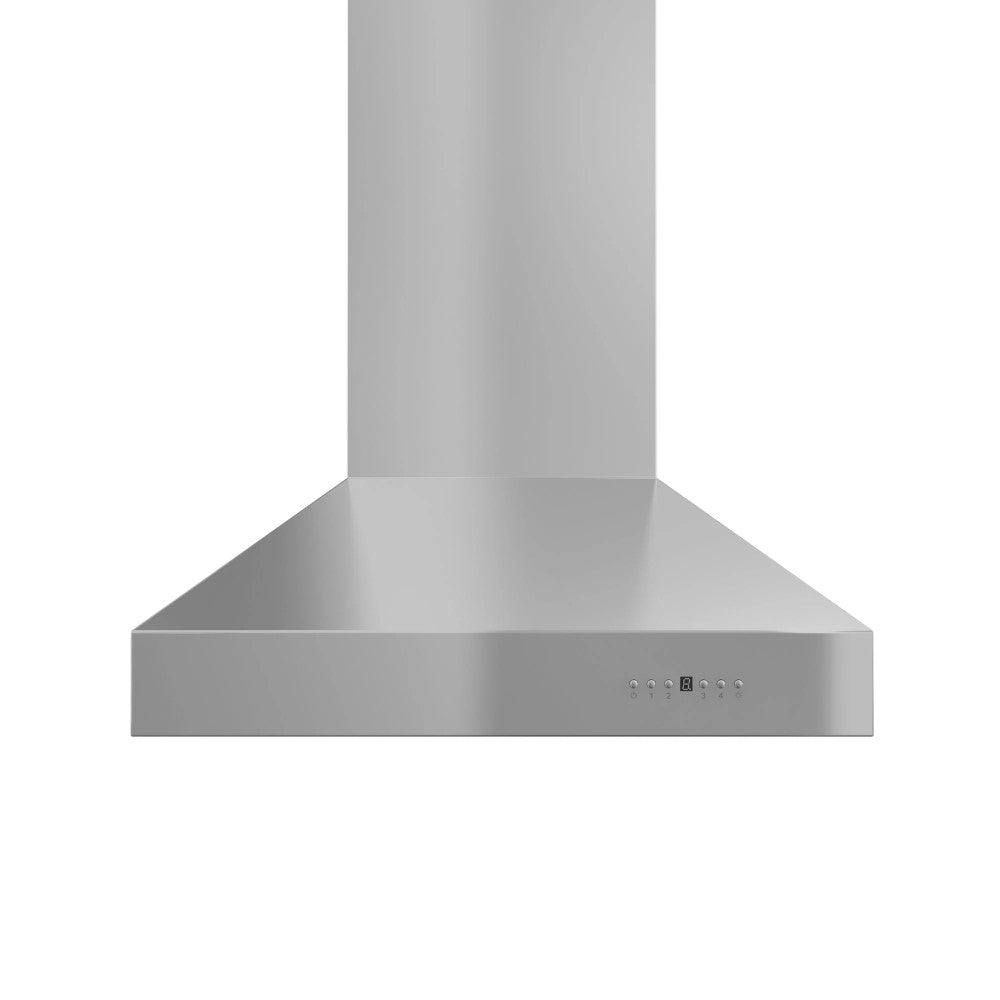

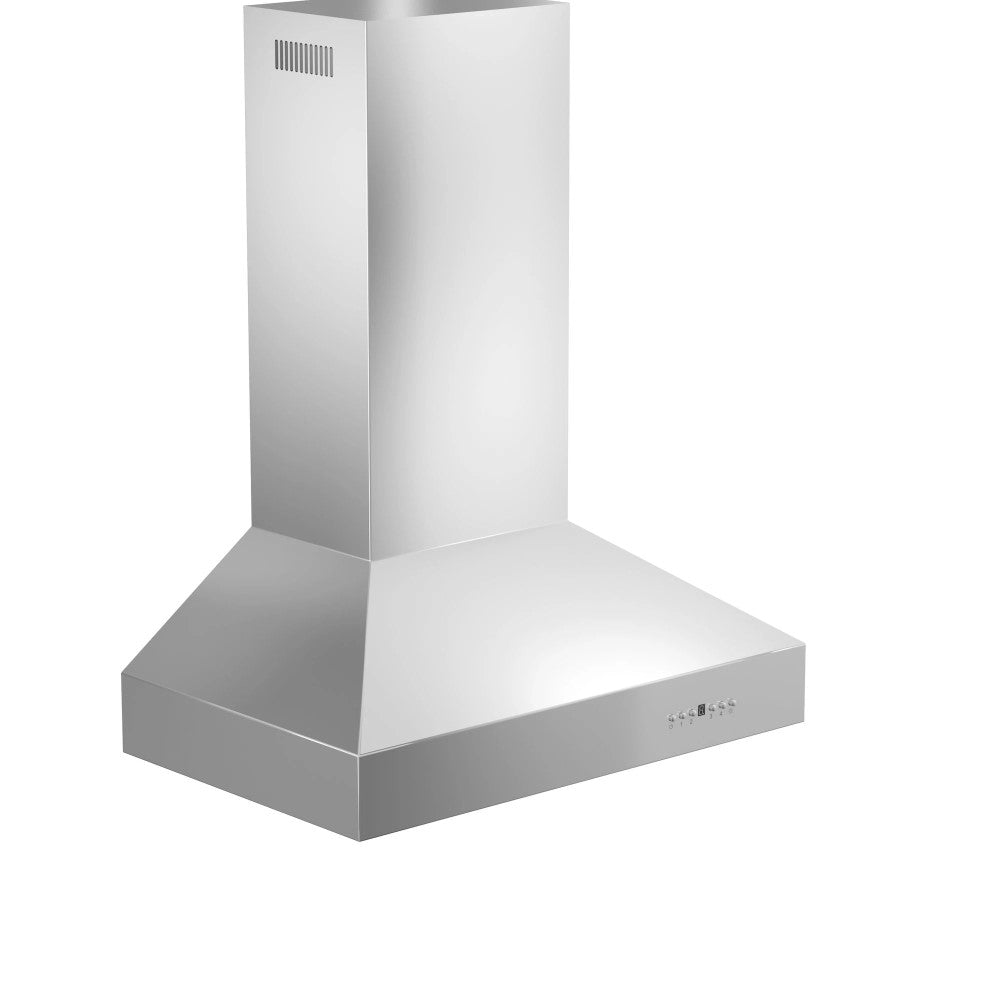

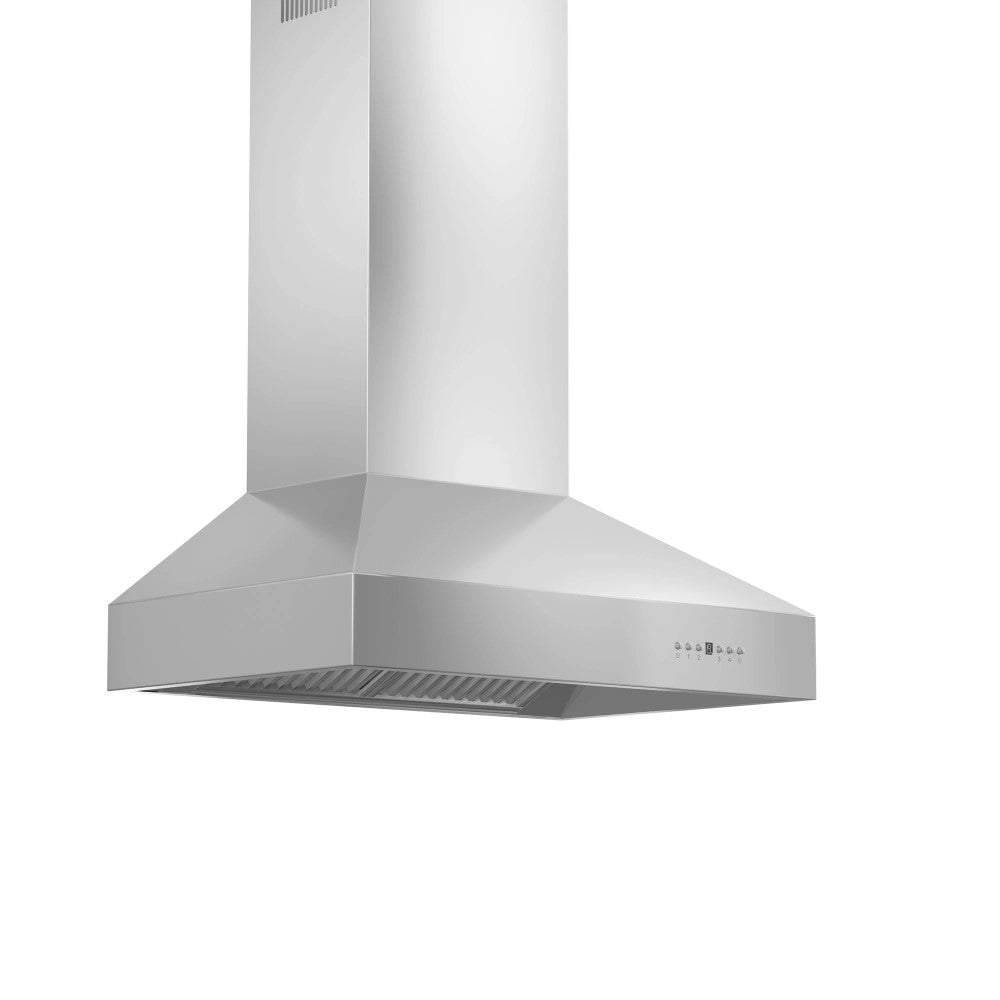

The ZLINE 697-304 professional wall mount stainless steel hood is designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304-grade stainless steel, making it approved for outdoor use. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

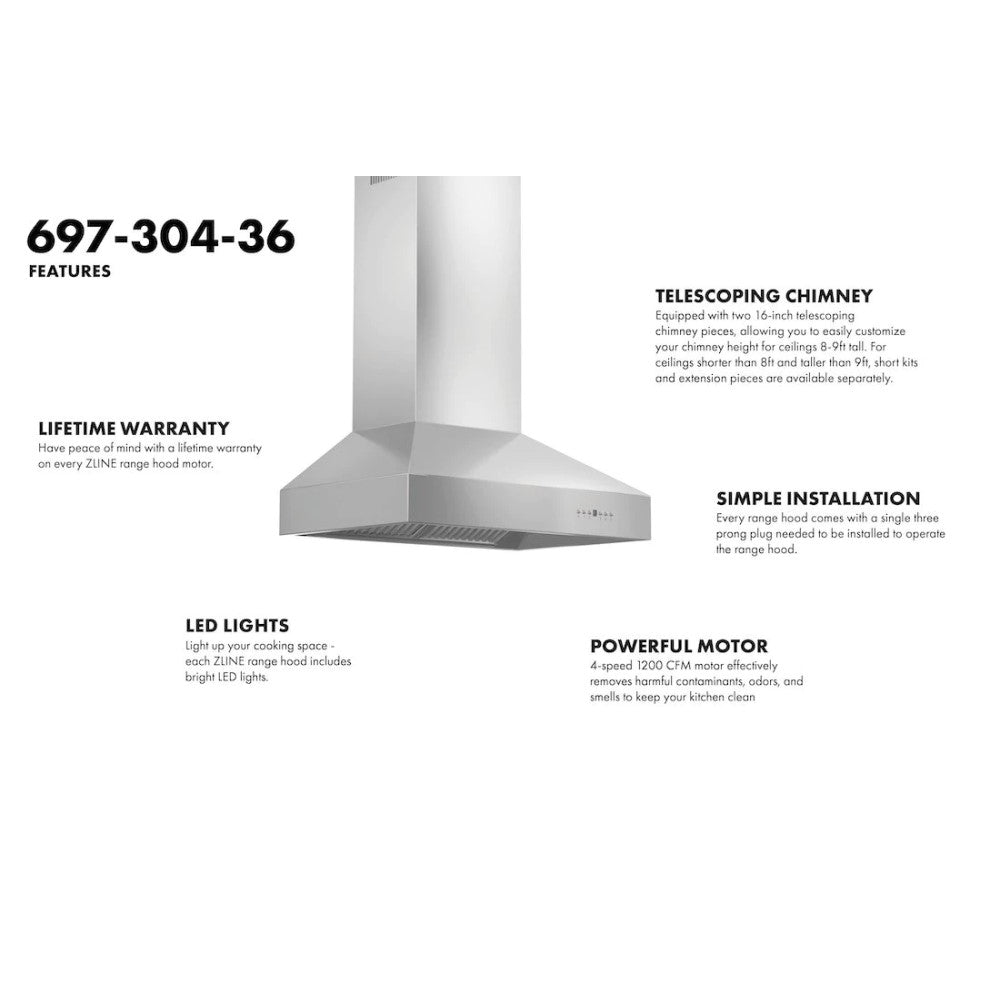

This hood contains many unique features, such as:

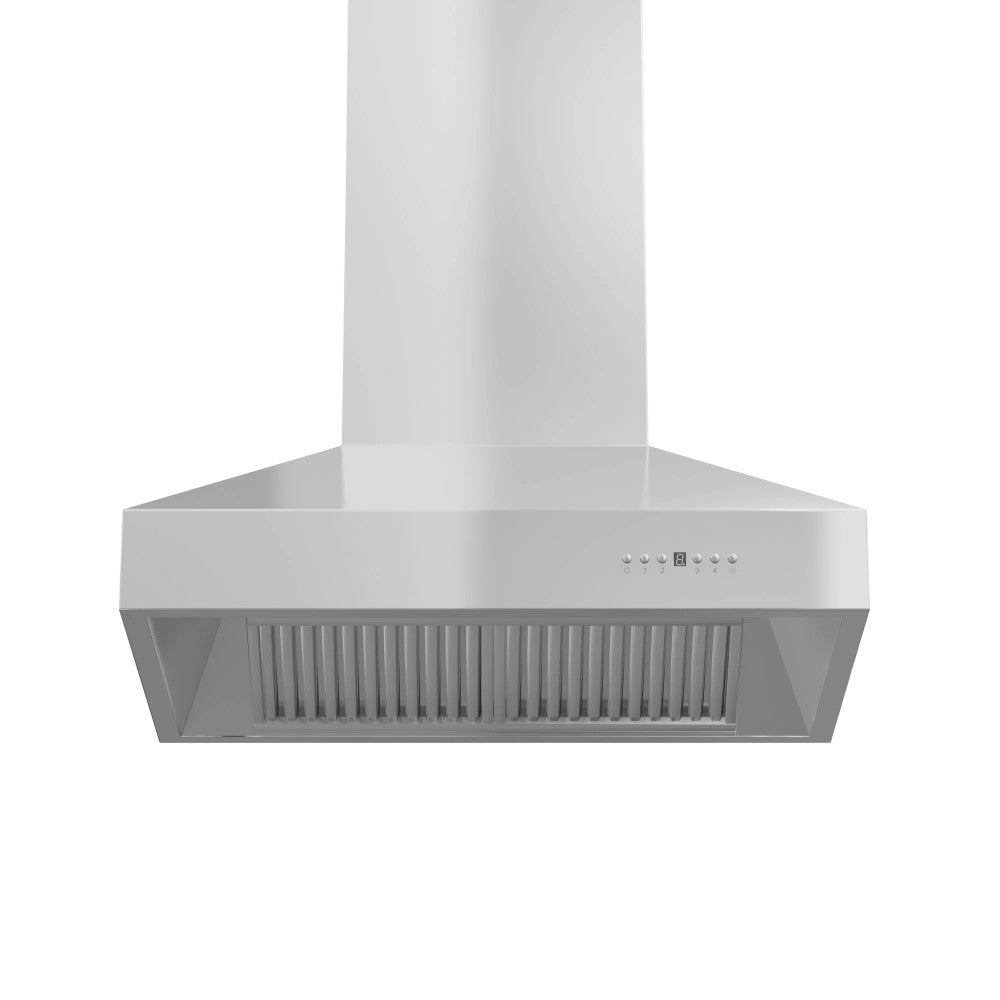

- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting
- High-performance 4-speed motor
- Includes chimney
All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods.
ZLINE Range Hoods are supposed to be seen, not heard. That’s why at most speeds, our range hoods are quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you’re helping with homework.

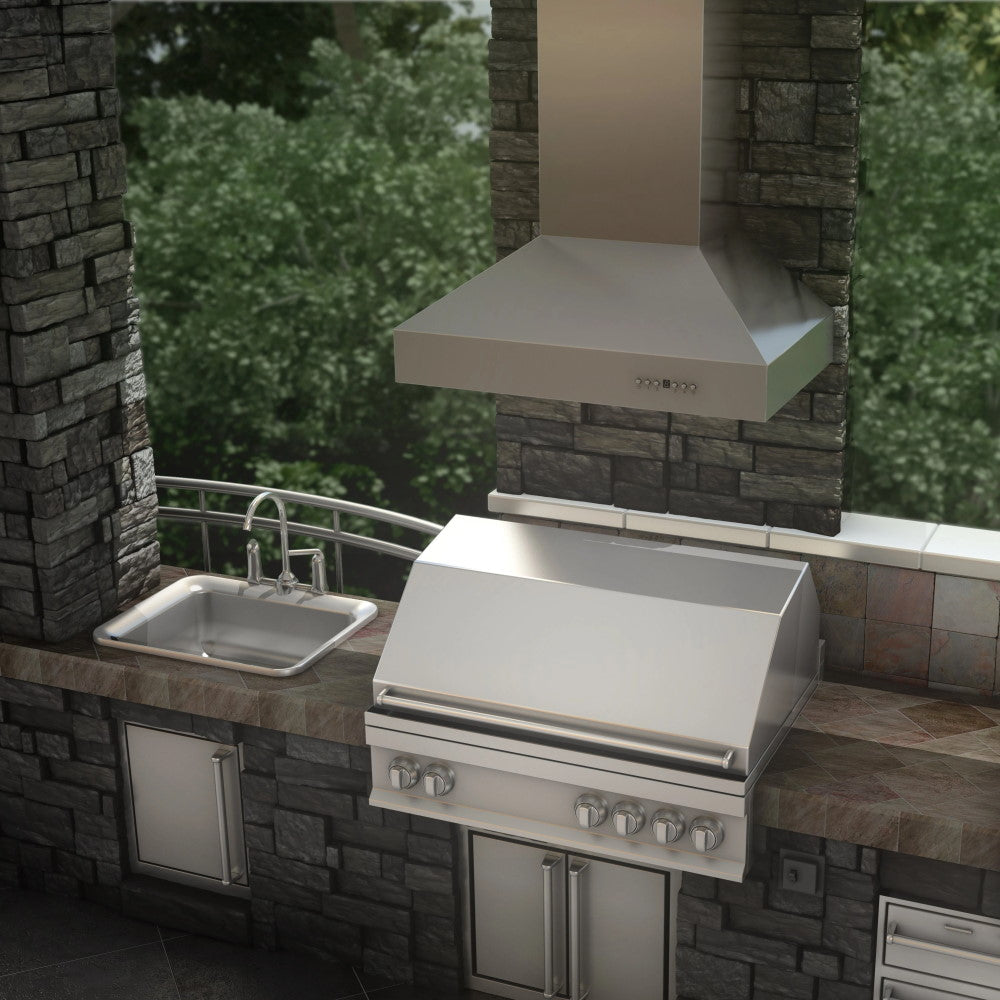

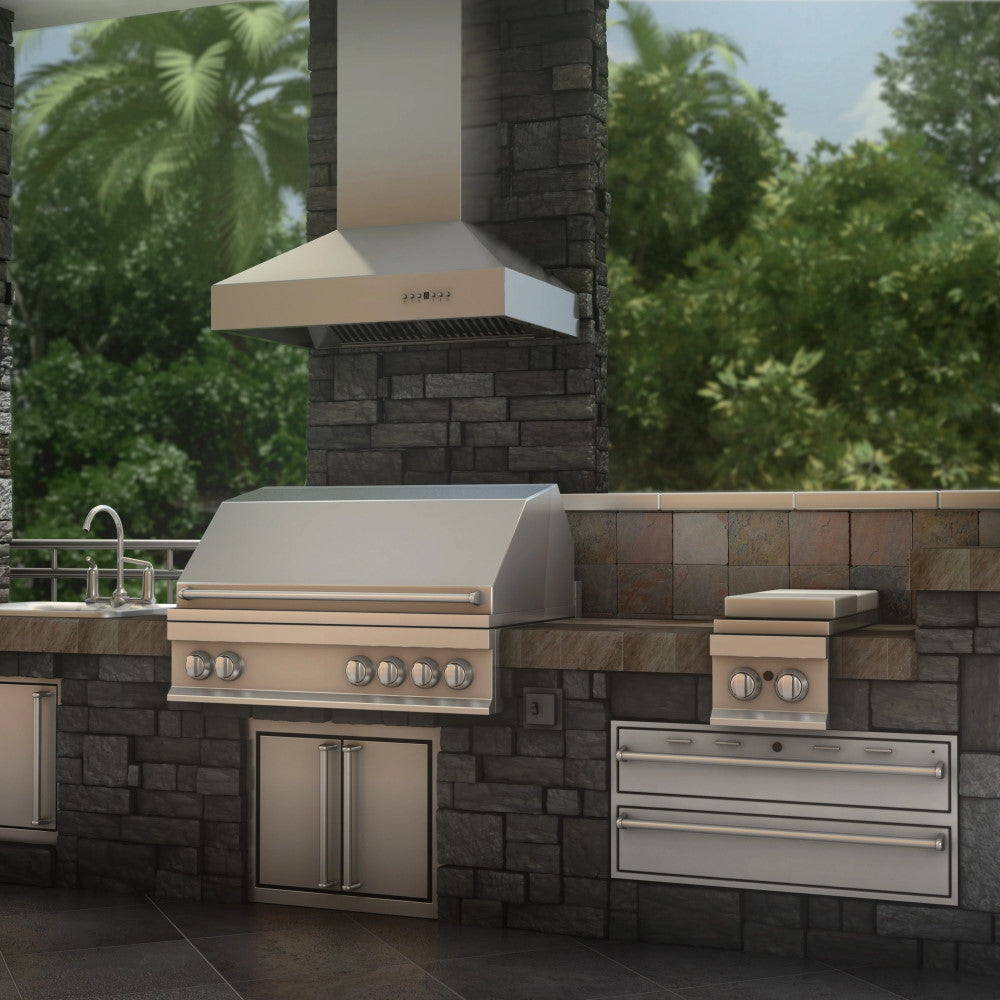

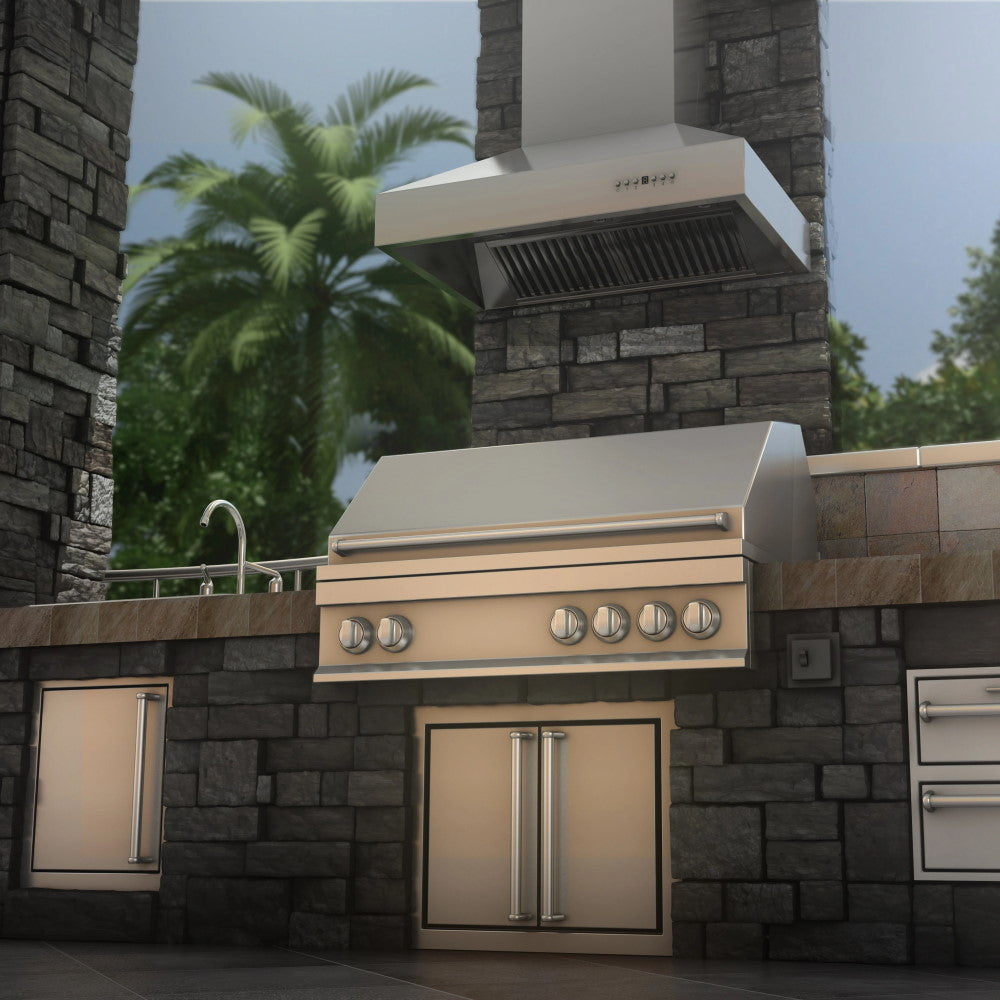

Please note the position of a grill lid can block the range hood filters and decrease range hood performance. We recommend moving the range hood to accommodate your grill lid or ensuring range hood depth will surpass the size of the grill and mounted 38-42 neys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
PRODUCT DETAILS
Product Specifications

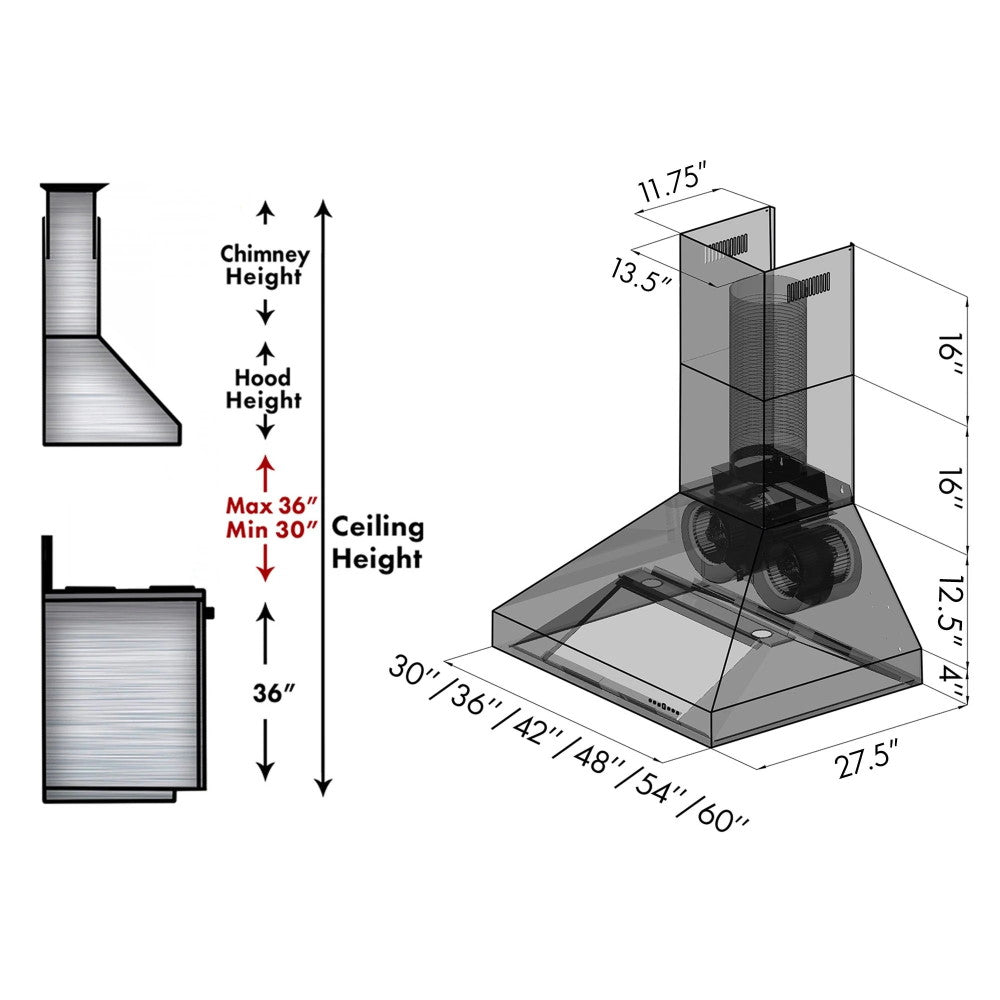

Dimensions
- 697-304-30: 30" W x 27.5" D x 16.375" H
- 697-304-36: 36" W x 27.5" D x 16.375" H
- 697-304-42: 42" W x 27.5" D x 16.375" H
- 697-304-48: 48" W x 27.5" D x 16.375" H
- 697-304-54: 54" W x 27.5" D x 16.375" H
- 697-304-60: 60" W x 27.5" D x 16.375" H
Chimney
- 13.5" W x 11.75" D x 16" H (x2) (Telescoping)
Chimney Short Kit and Extension(s) Available:
Short Kit (2-12") ~7-8 ft. Ceilings
1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
2 PC Extension (2-36") ~10-12 ft. Ceilings
Venting Size
- 6" Outlet (Transition piece with backdraft damper to round ducting included)
Charcoal Filters (not included) available for ductless/recirculating option.
Airflow (Q/L/M/H):
- 697-304-30: 120/240/320/400
- 697-304-36: 280/420/560/700
- 697-304-42: 280/420/560/700
- 697-304-48: 280/420/560/700
- 697-304-54: 280/420/560/700
- 697-304-60: 280/420/560/700
Lighting
- LED Lights
Noise Level
- 20/29/34/41 (Decibels)
Voltage
- 110V/60HZ
Motor
- High Performance 400 CFM/4-Speed Motor
Mount Type
- Wall Mounted
Speeds
- 4 Speeds
Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Material
- 19g #304 Stainless Steel
Warranty
- 3 Year Parts Warranty
